Signal integrity at 400G, 800G, and 1.6T starts with the right transceiver — and the wrong one means latency, link failures, and costly rework. Dorado sources and supports the full range of high-speed optical transceivers for AI fabric, spine-and-leaf data center architectures, and long-haul connectivity — so your network performs at the speeds your infrastructure demands.

Full Stack. One Partner.

From initial consultation and procurement to deployment, ongoing service, and optical testing support, we are your single partner for everything your high-speed interconnect needs to succeed — with the Cruz Management Platform tying it all together and managing your environment end-to-end.

dorado_transceivers_wide_1

TRANSCEIVERS  -- 1.6T

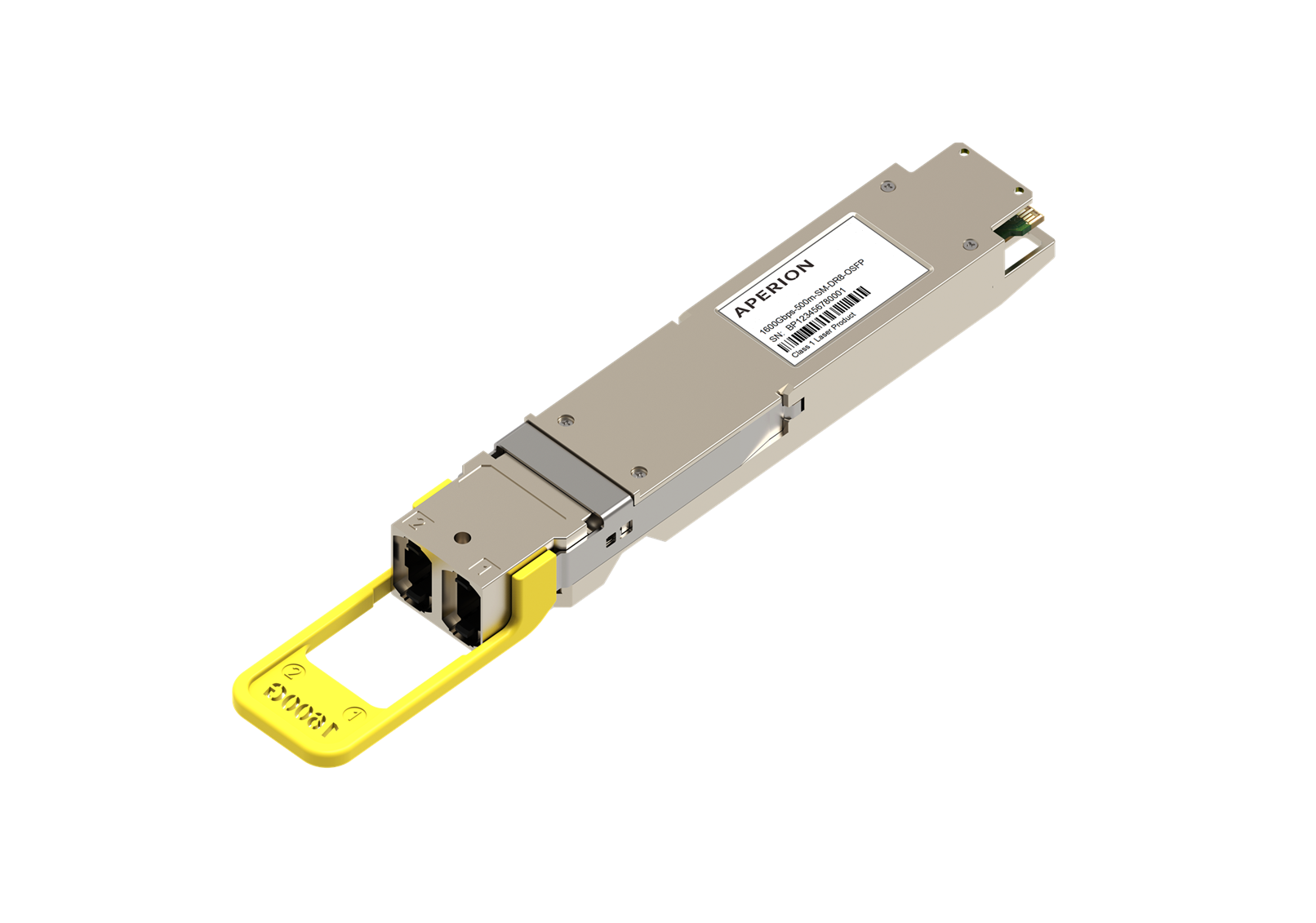

1.6T OSFP224 2 DR4

1600T-AA-D

  • Links up to 212.5 Gbps data rate (per channel) by PAM4 modulation format over single-mode fiber. It is a small-form-factor hot pluggable transceiver module integrated with high performance Sipho modulator. It is compliant with 1600G Ethernet specs and OSFP MSA.

powered by

aperion_technologies_logo

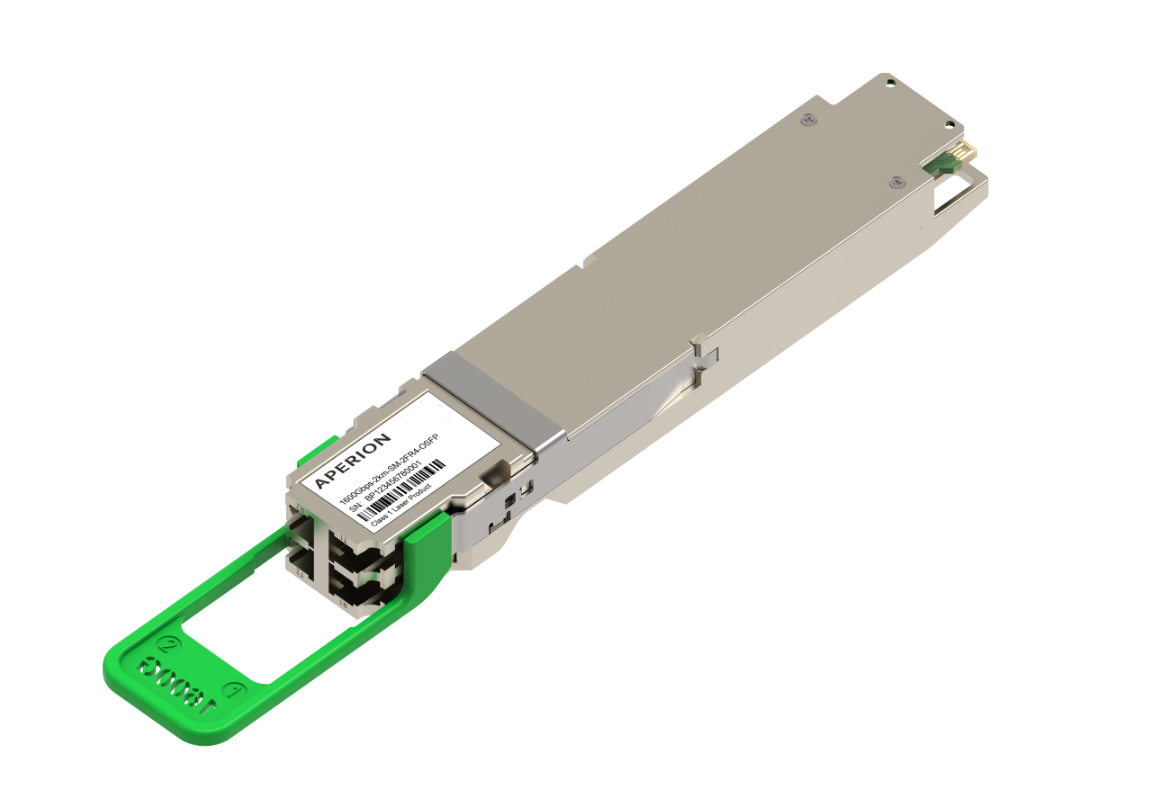

1.6T OSFP224 2 FR4

1600T-AA-F

  • Links up to 212.5 Gb/s data rate (per channel) by PAM4 modulation format over single-mode fiber. It is a small-form-factor hot pluggable transceiver module integrated with high performance Sipho modulator. It is compliant with 1600G Ethernet specs and OSFP MSA.

powered by

aperion_technologies_logo

TRANSCEIVERS -- 800G

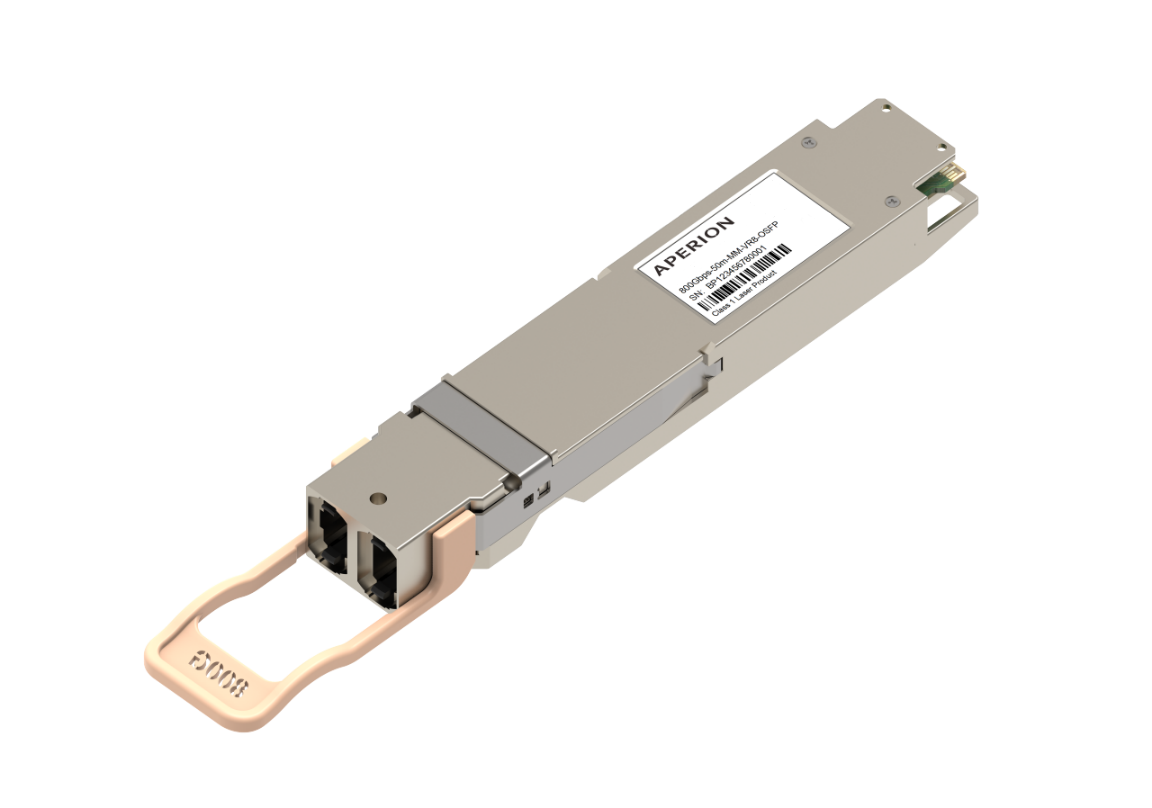

OSFP112 2*VR4/VR8

800T-AA-VO

  • Links up to 106.25 Gb/s data rate (per channel) by PAM4 modulation format over multi-mode fiber. It is a small-form-factor hot pluggable transceiver module integrated with the high performance VCSEL laser and high sensitivity PIN receiver. It is compliant with 800G Ethernet specs and OSFP MSA.

powered by

aperion_technologies_logo

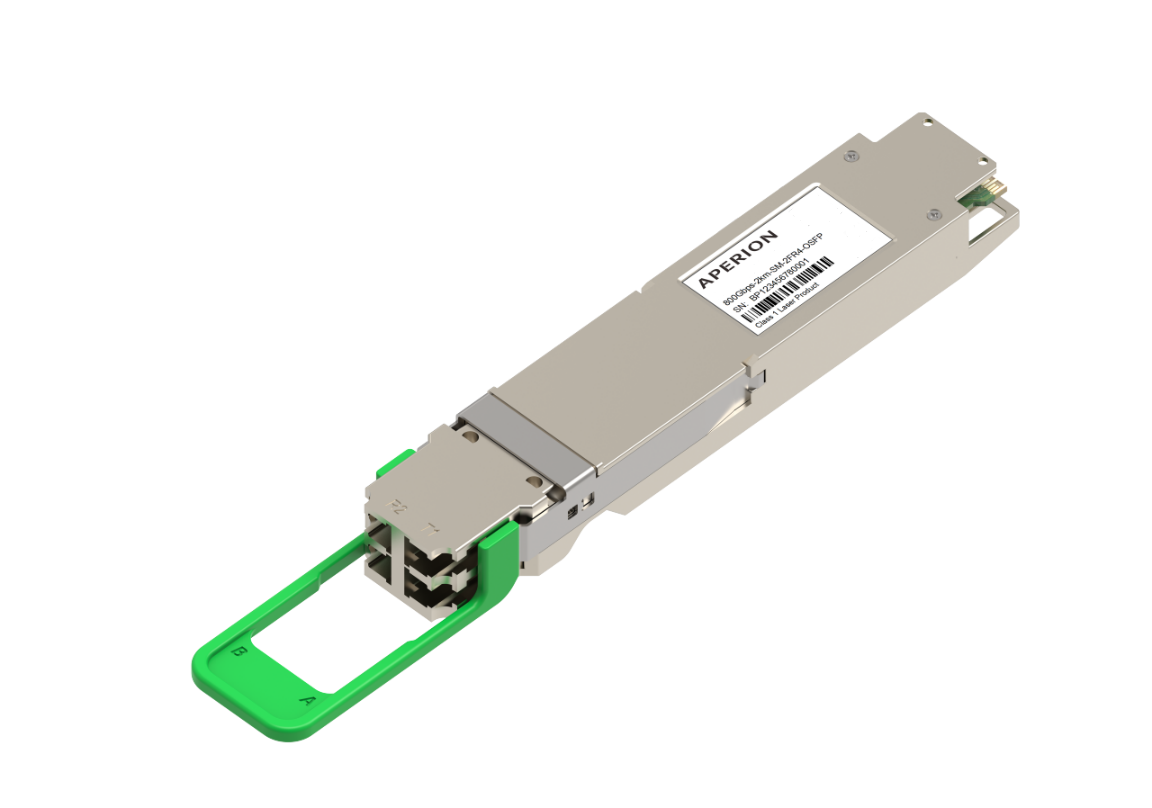

800G OSFP112 2*FR4

800T-AA-FO

  • Links up to 106.25 Gbps data rate (per channel) by PAM4 modulation format over single-mode fiber. It is a small-form-factor hot pluggable transceiver module integrated with high performance Sipho modulator. It is compliant with 800G Ethernet specs and OSFP MSA.

powered by

aperion_technologies_logo

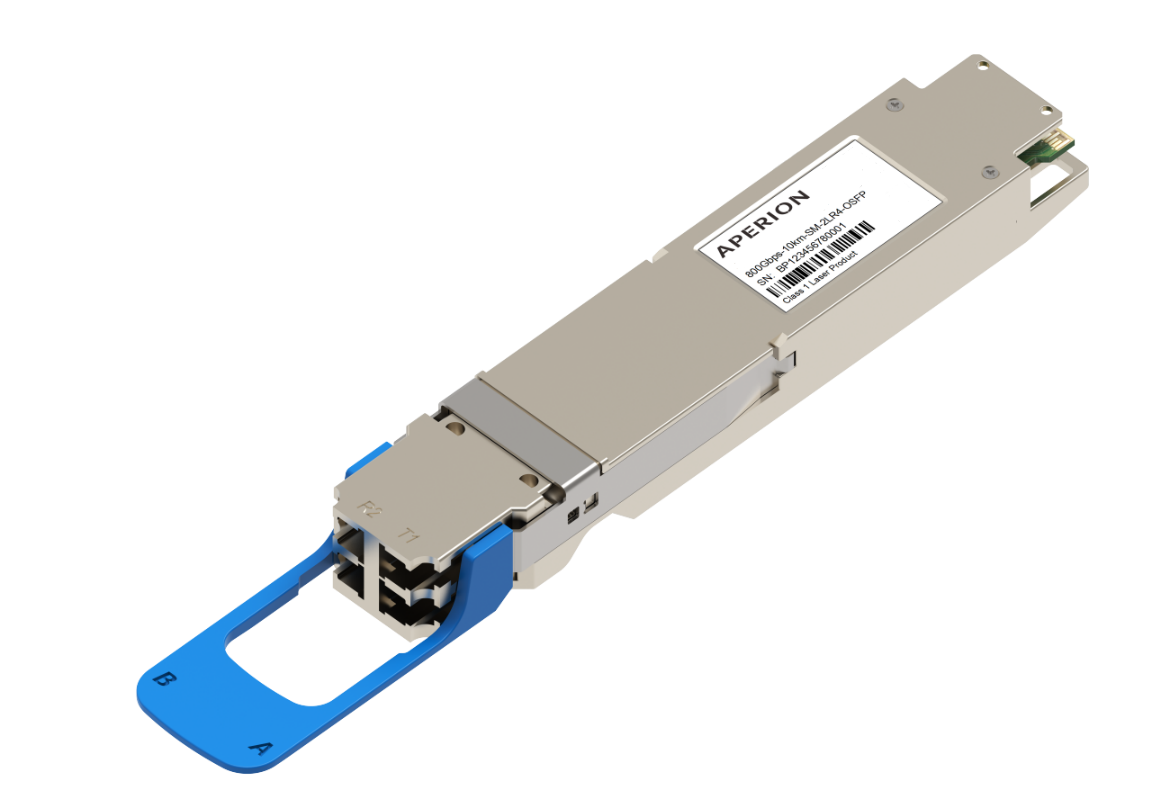

800G OSFP112 2 LR4

800T-AA-LO

  • Links up to 106.25 Gbps data rate (per channel) by PAM4 modulation format over single-mode fiber. It is a small-form-factor hot pluggable transceiver module integrated with high performance Sipho modulator. It is compliant with 800G Ethernet specs and OSFP MSA.

powered by

aperion_technologies_logo

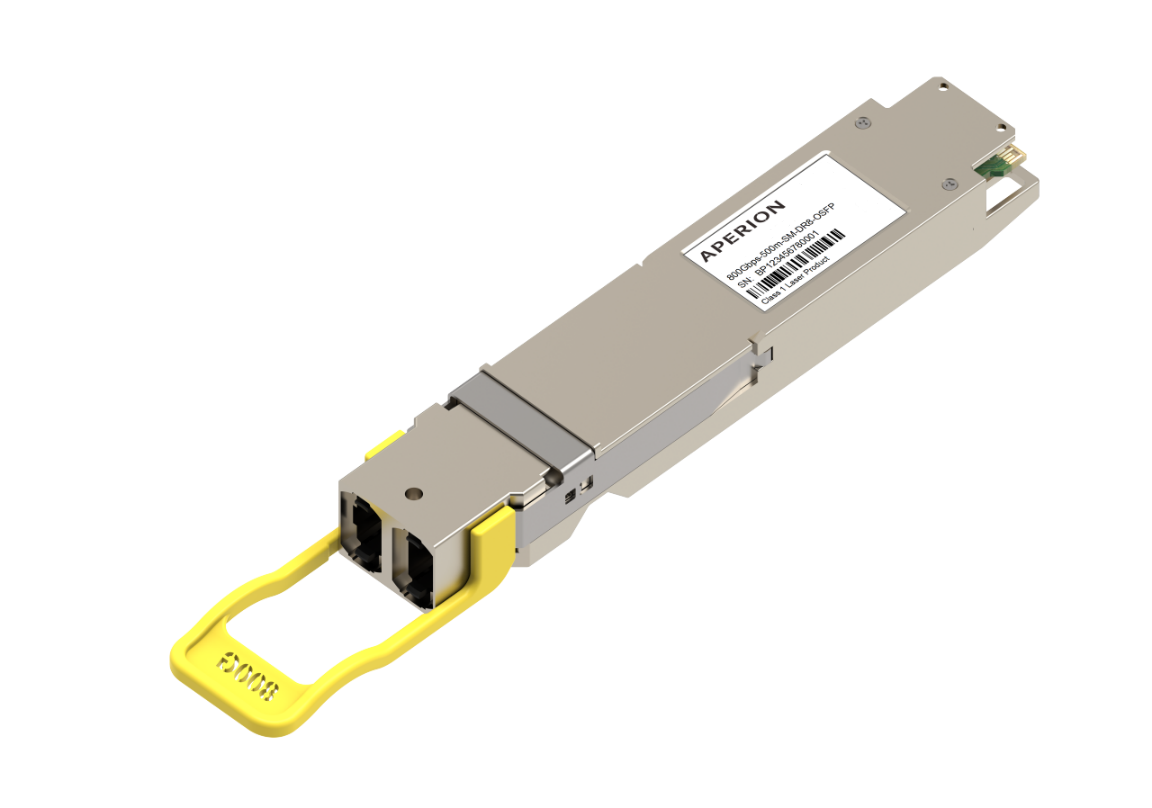

800G OSFP112 2 DR4 DR8

800T-AA-DO

  • Links up to 106.25 Gbps data rate (per channel) by PAM4 modulation format over single-mode fiber. It is a small-form-factor hot pluggable transceiver module integrated with high performance Sipho modulator. It is compliant with 800G Ethernet specs and OSFP MSA.

powered by

aperion_technologies_logo

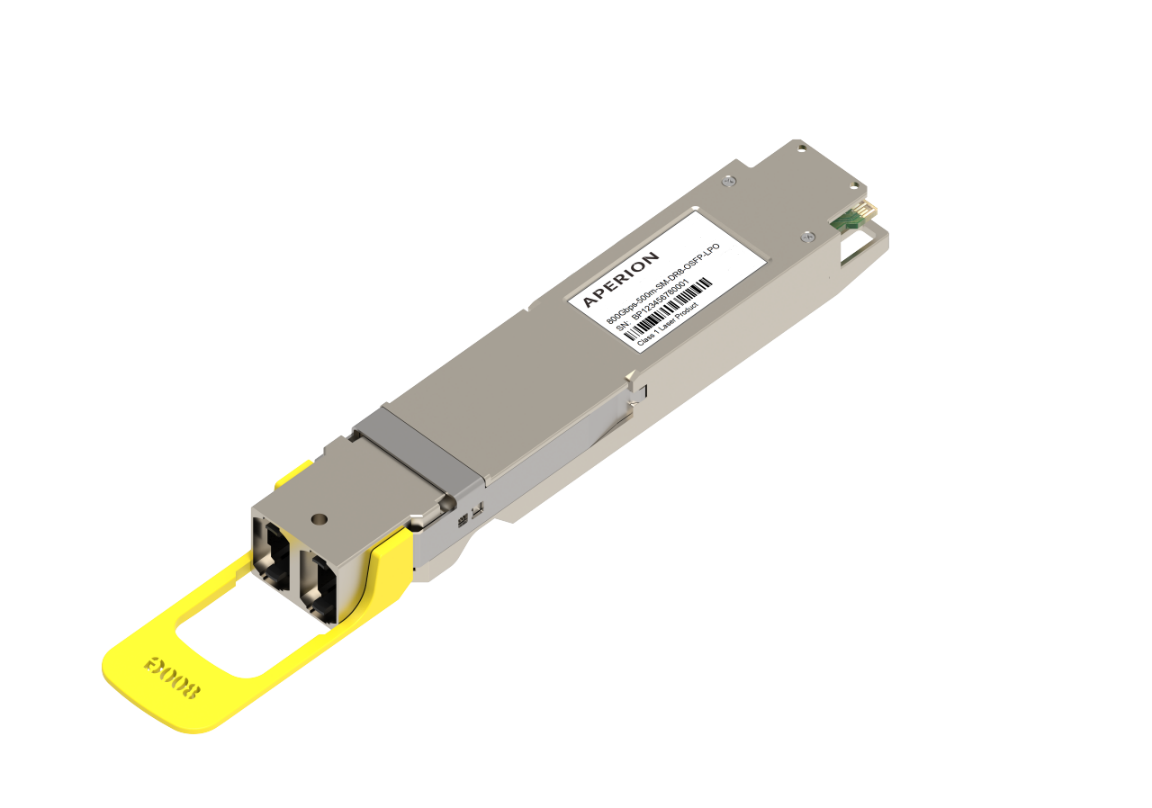

800G OSFP112 2*DR4/DR8 LPO

800T-AA-DOP

  • Uses advanced linear technology, without DSP or CDR, to transmit and receive optical data at speeds up to 106.25 Gbps per channel using PAM4 modulation over single mode fiber. The LPO design helps lower power consumption and reduce latency, making it more energy-efficient and cost effective. This hot-pluggable module includes high performance modulators and detectors for reliable data transmission.

powered by

aperion_technologies_logo

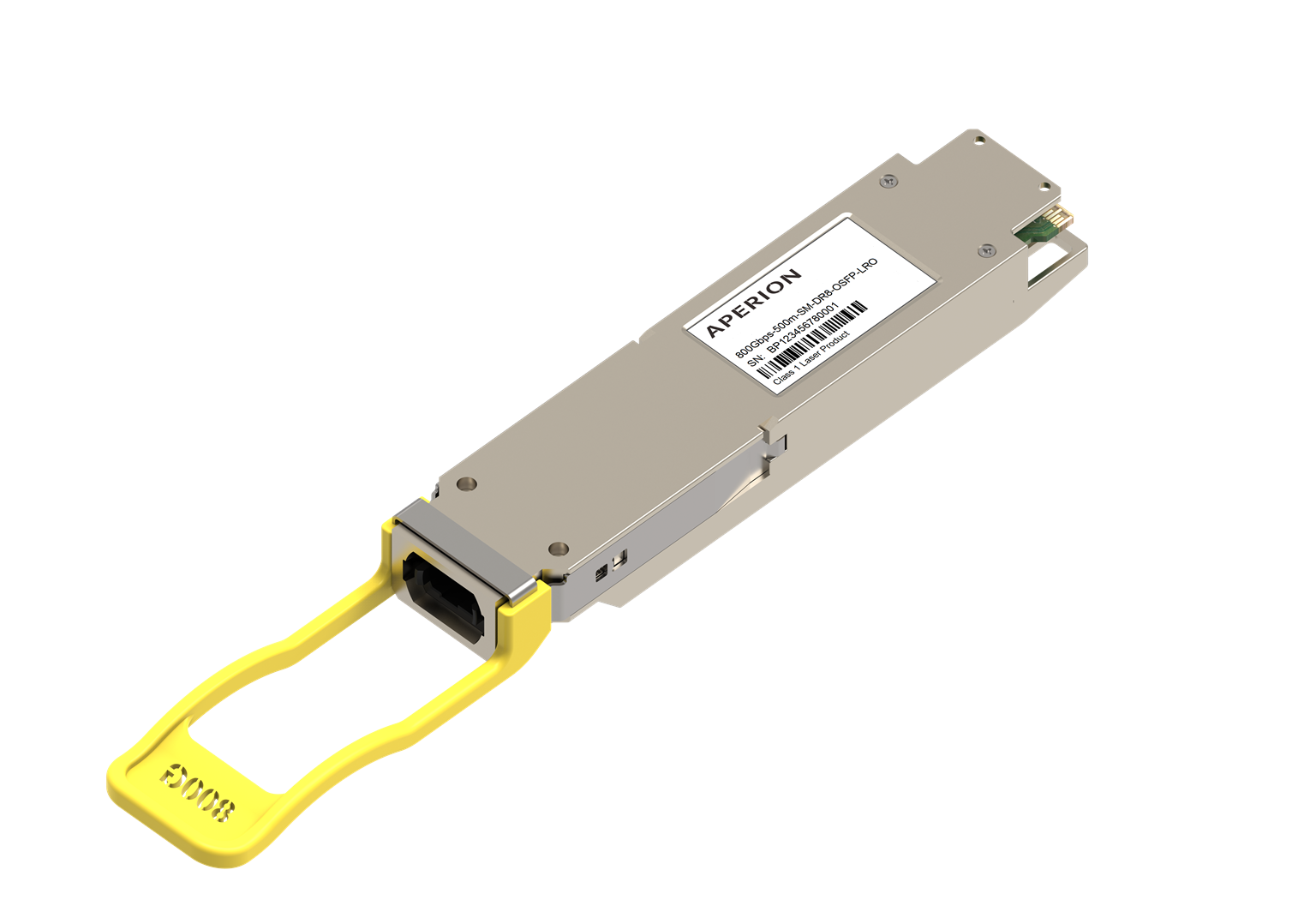

800G OSFP112 2 DR4 DR8 LRO

800T-AA-DOR

  • Links up to 106.25 Gbps data rate (per channel) by PAM4 modulation format over single mode fiber. It is a small-form-factor hot pluggable transceiver module integrated with high performance Sipho modulator. It is compliant with 800G Ethernet specs and OSFP MSA.

powered by

aperion_technologies_logo

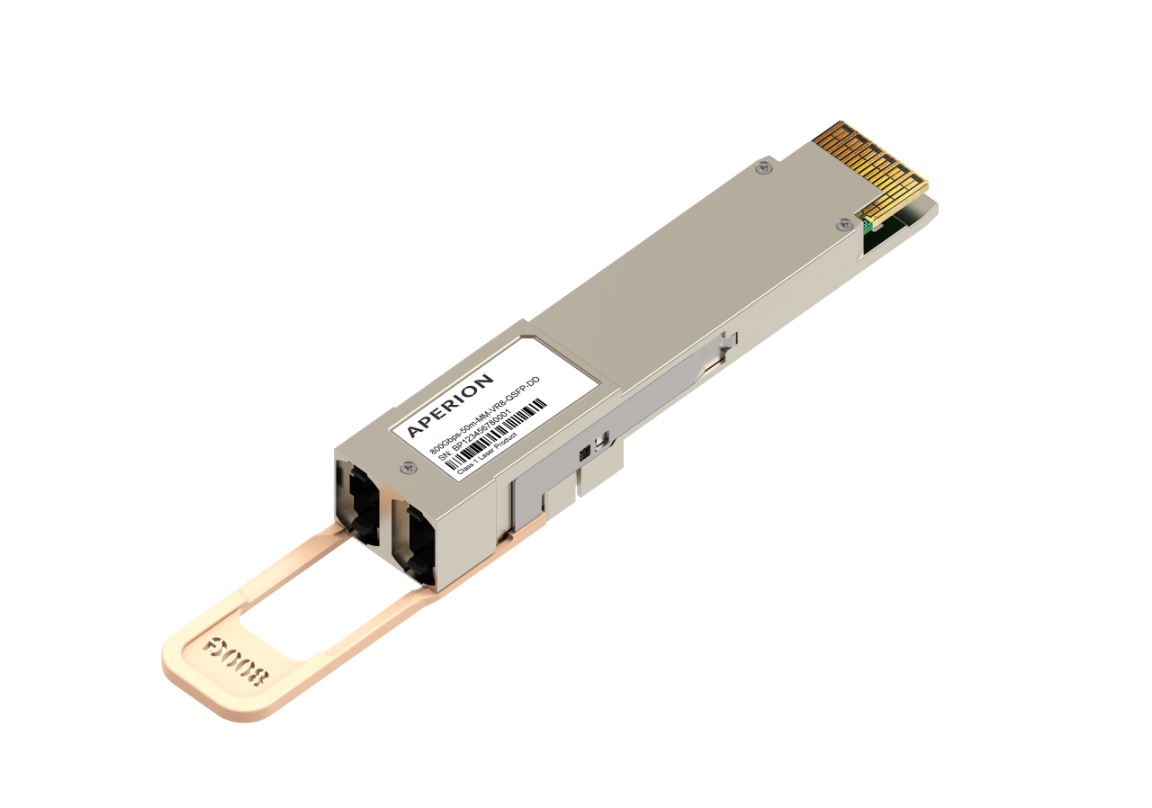

800G QSFP112-DD 2 VR4 VR8

800T-AA-VQ

  • Links up to 106.25 Gbps data rate (per channel) by PAM4 modulation format over single-mode fiber. It is a small-form-factor hot pluggable transceiver module integrated with high performance Sipho modulator. It is compliant with 800G Ethernet specs and OSFP MSA.

powered by

aperion_technologies_logo

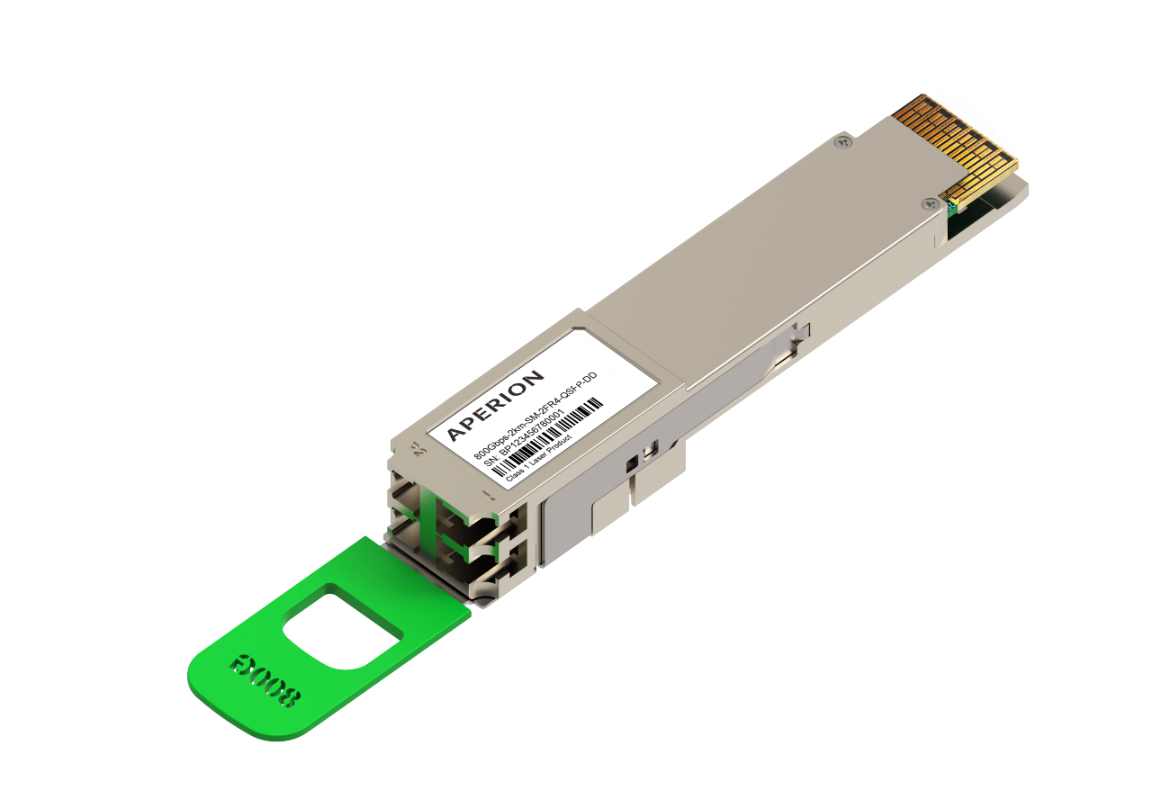

800G QSFP112-DD 2 FR4

800T-AA-FQ

  • Links up to 106.25Gbps data rate (per channel) by PAM4 modulation format over single-mode fiber. It is a small-form-factor hot pluggable transceiver module integrated with high performance EML laser. It is compliant with 800G Ethernet specs and QSFP-DD MSA.

powered by

aperion_technologies_logo

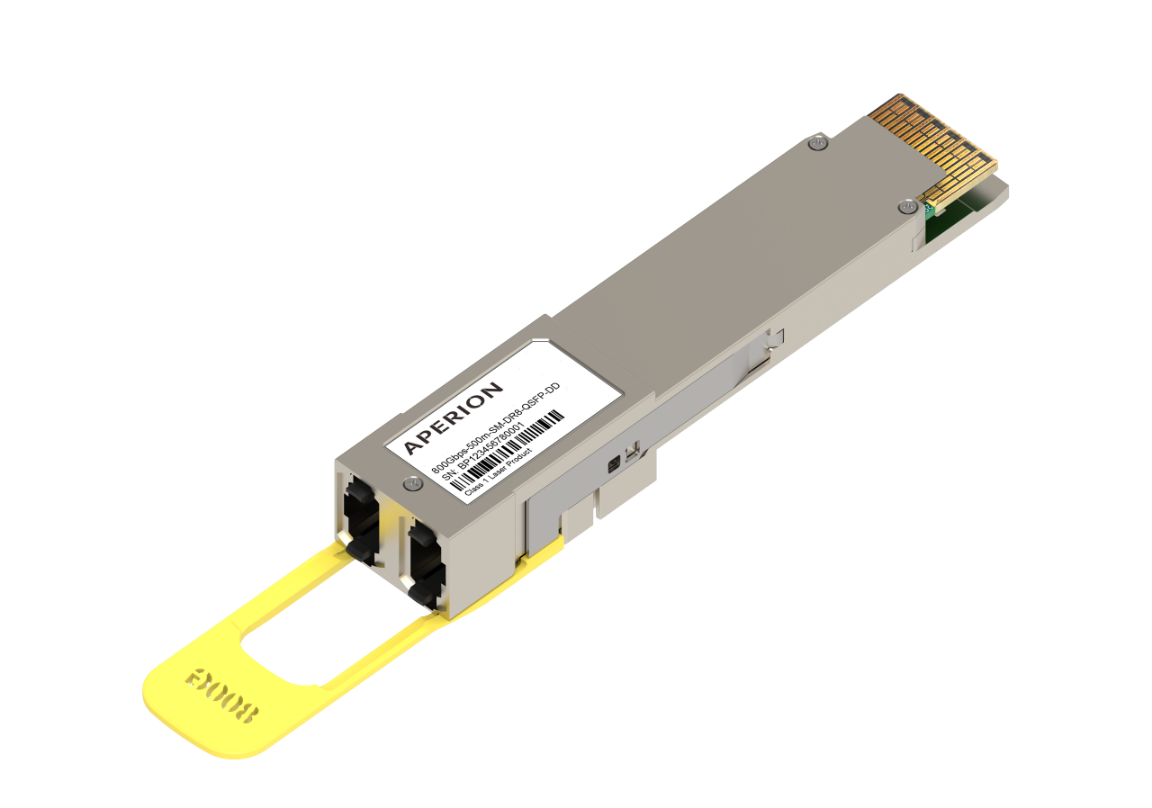

800G QSFP112-DD 2 DR4 DR8

800T-AA-DQ

  • Links up to 106.25 Gbps data rate (per channel) by PAM4 modulation format over single-mode fiber. It is a small-form-factor hot pluggable transceiver module integrated with high performance EML laser. It is compliant with 800G Ethernet specs and QSFP-DD MSA

powered by

aperion_technologies_logo

TRANSCEIVERS -- 400G

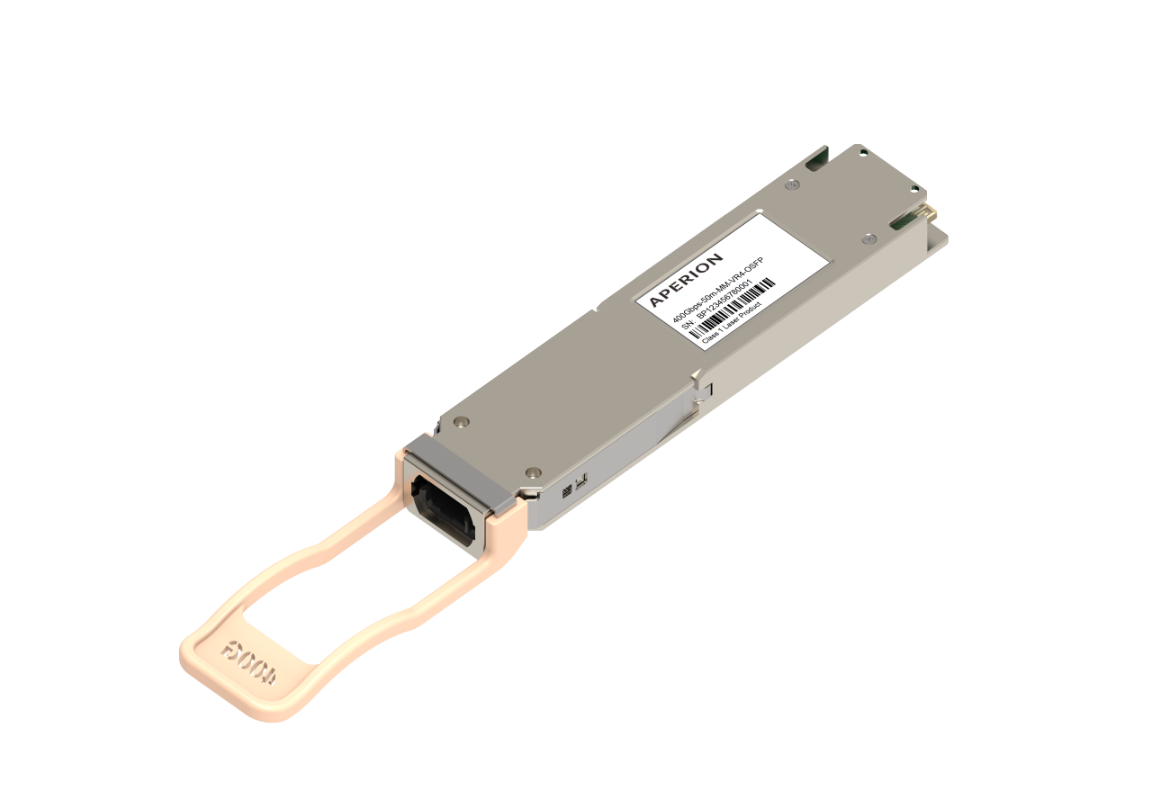

400G OSFP112 VR4

400T-AA-VO

  • Links up to 106.25 Gb/s data rate (per channel) by PAM4 modulation format over multi-mode fiber. It is a small-form-factor hot pluggable transceiver module integrated with the high performance VCSEL laser and high sensitivity PIN receiver. It is compliant with 400G Ethernet specs and OSFP MSA.

powered by

aperion_technologies_logo

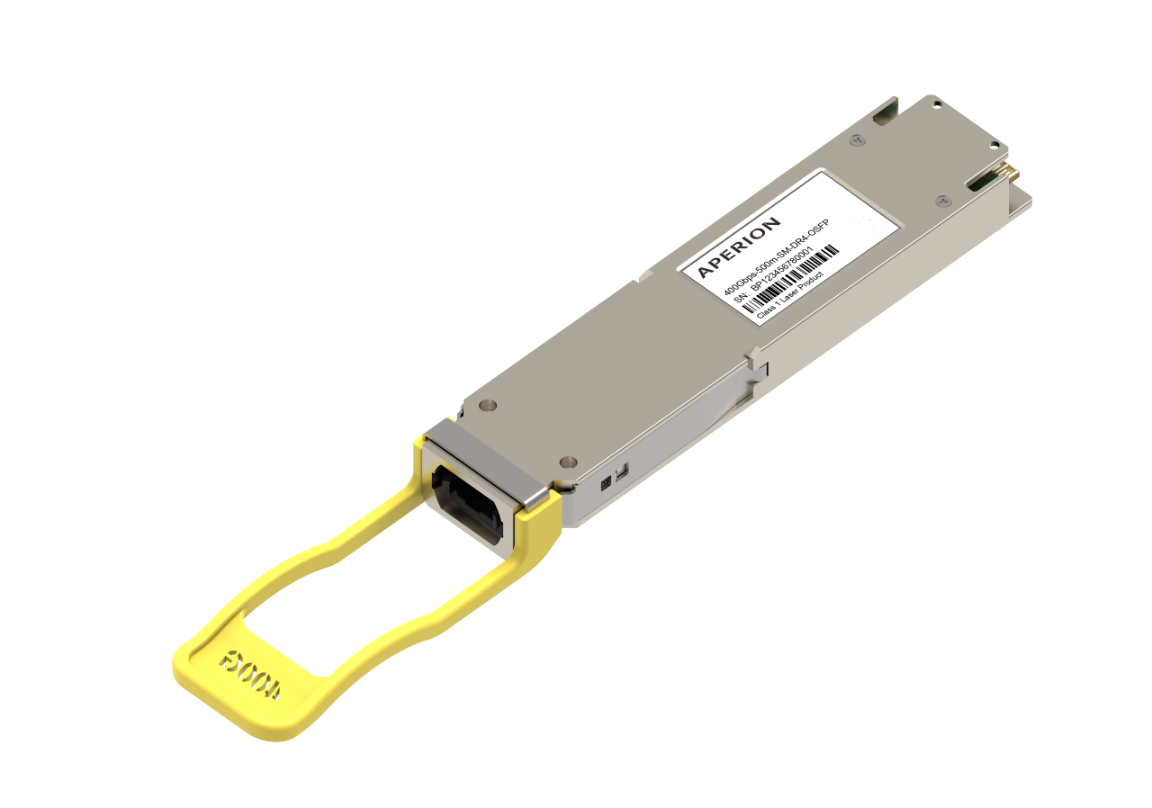

400G OSFP112 DR4

400T-AA-DO

  • Links up to 106.25 Gb/s data rate (per channel) by PAM4 modulation format over single-mode fiber. It is a small-form- factor RHS hot pluggable transceiver module base on high performance SIP modulator. It is compliant with 400G Ethernet, OSFP MSA.

powered by

aperion_technologies_logo

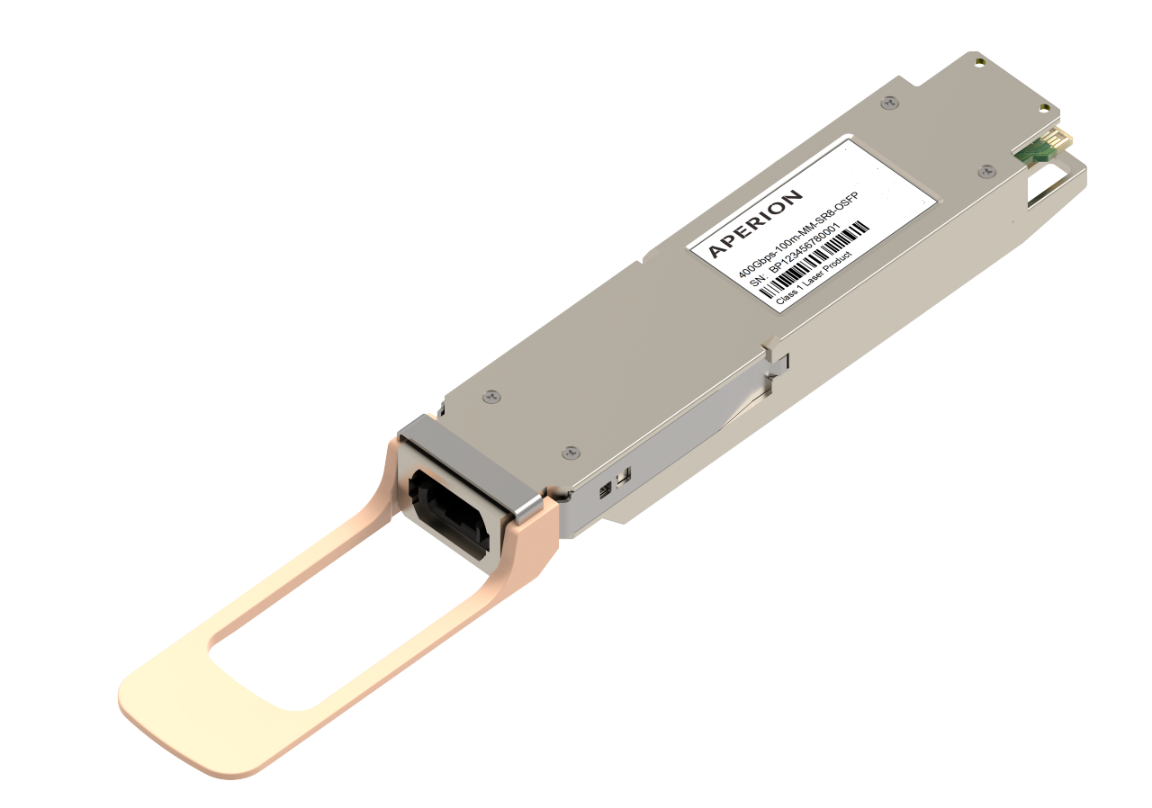

400G OSFP56 SR8

400T-AA-SO

  • Links up to 53 .125Gbps data rate(per channel) by PAM4 modulation format over multi-mode fiber. It is a OSFP hot pluggable transceiver module integrated with the high performance VCSEL laser and high sensitivity PIN receiver. It is compliant with 400G Ethernet 802.3cd specs and OSFP MSA.

powered by

aperion_technologies_logo

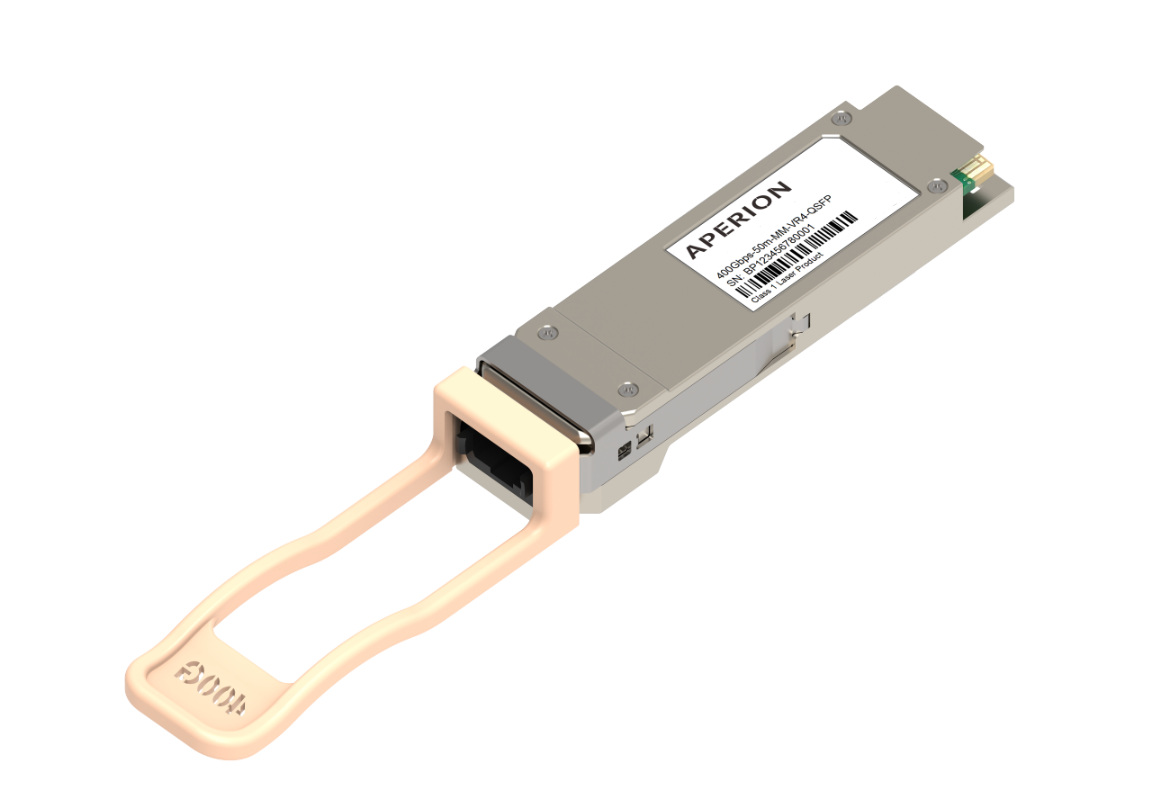

400G QSFP112 VR4

400T-AA-VQ

  • Links up to 106.25 Gb/s data rate (per channel) by PAM4 modulation format over multi-mode fiber. It is a small-form-factor hot pluggable transceiver module integrated with high performance VCSEL. It is compliant with 400G Ethernet specs and QSFP-DD MSA.

powered by

aperion_technologies_logo

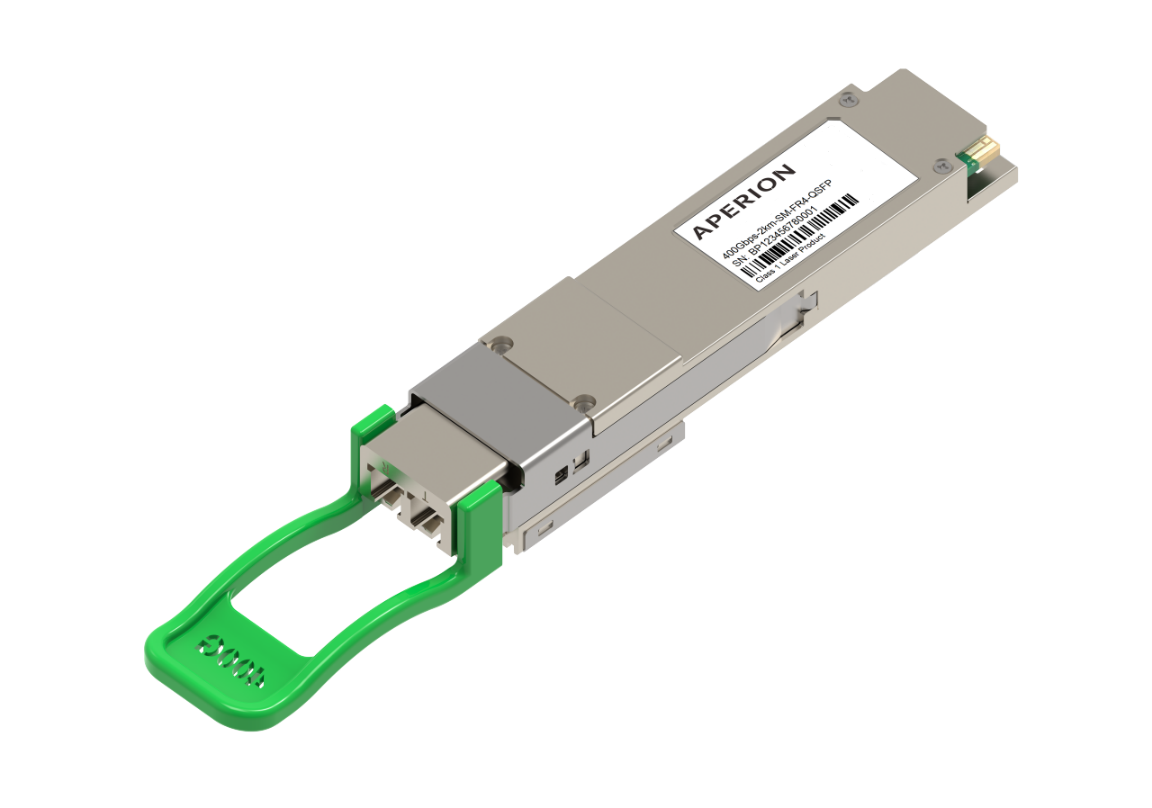

400G QSFP112 FR4

400T-AA-FQ

  • Links up to 106.25 Gb/s data rate (per channel) by PAM4 modulation format over single-mode fiber. It is a small-form- factor hot pluggable transceiver module integrated with high performance EML laser. It is compliant with 400G Ethernet specs; QSFP112 MSA.

powered by

aperion_technologies_logo

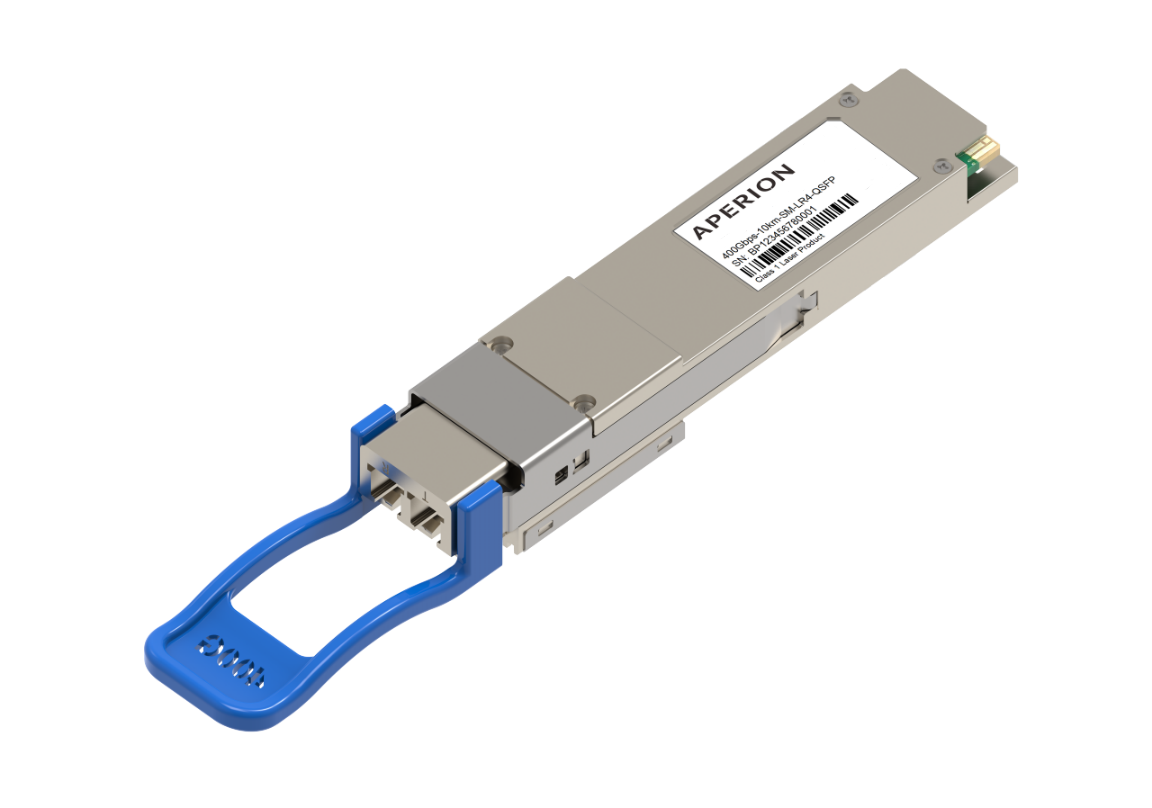

400G QSFP112 LR4

400T-AA-LQ

  • Links up to 106.25 Gb/s data rate (per channel) by PAM4 modulation format over single-mode fiber. It is a small-form- factor hot pluggable transceiver module integrated with high performance EML laser. It is compliant with 400G Ethernet specs; QSFP112 MSA.

powered by

aperion_technologies_logo

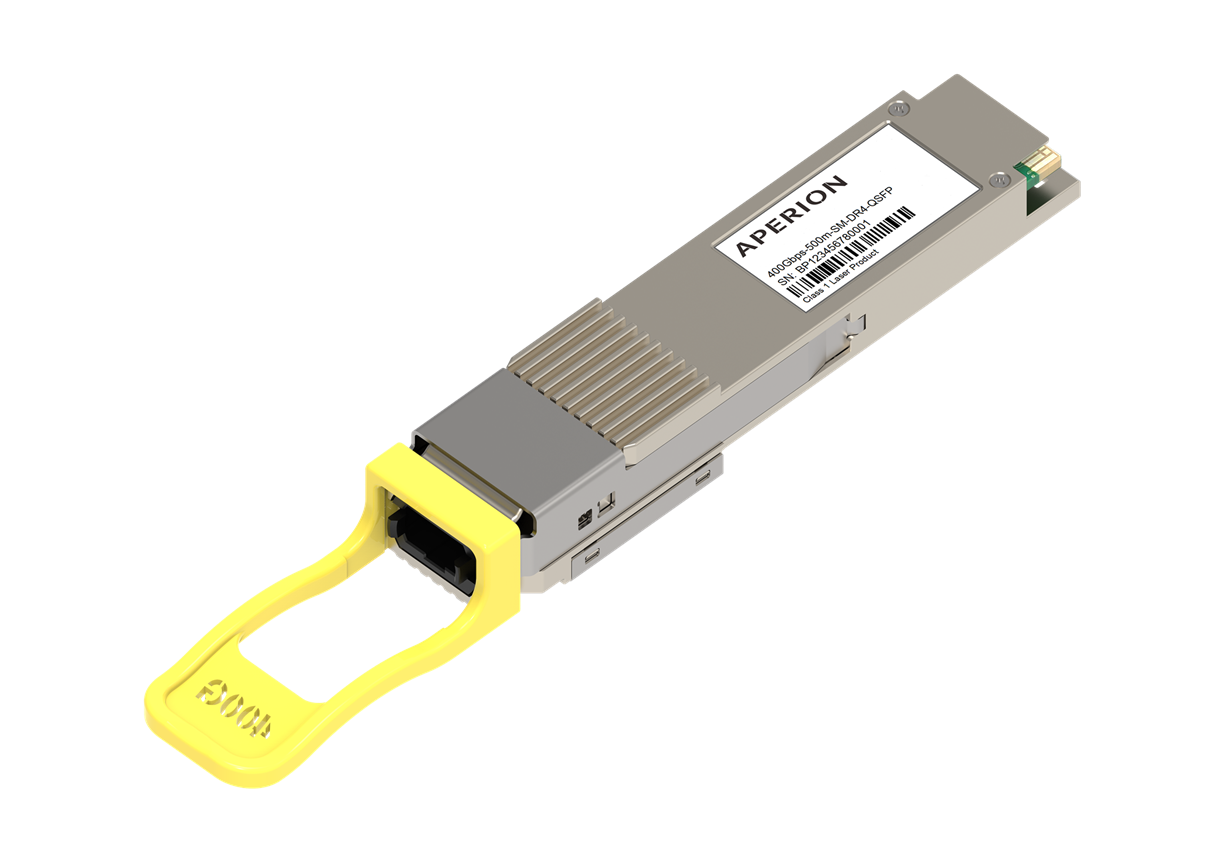

400G QSFP112 DR4

400T-AA-DQ

  • Links up to 106.25 Gb/s data rate (per channel) by PAM4 modulation format over single-mode fiber base on high performance SIP modulator and PD detectors. It is compliant with 400G Ethernet specs, QSFP112 MSA.

powered by

aperion_technologies_logo

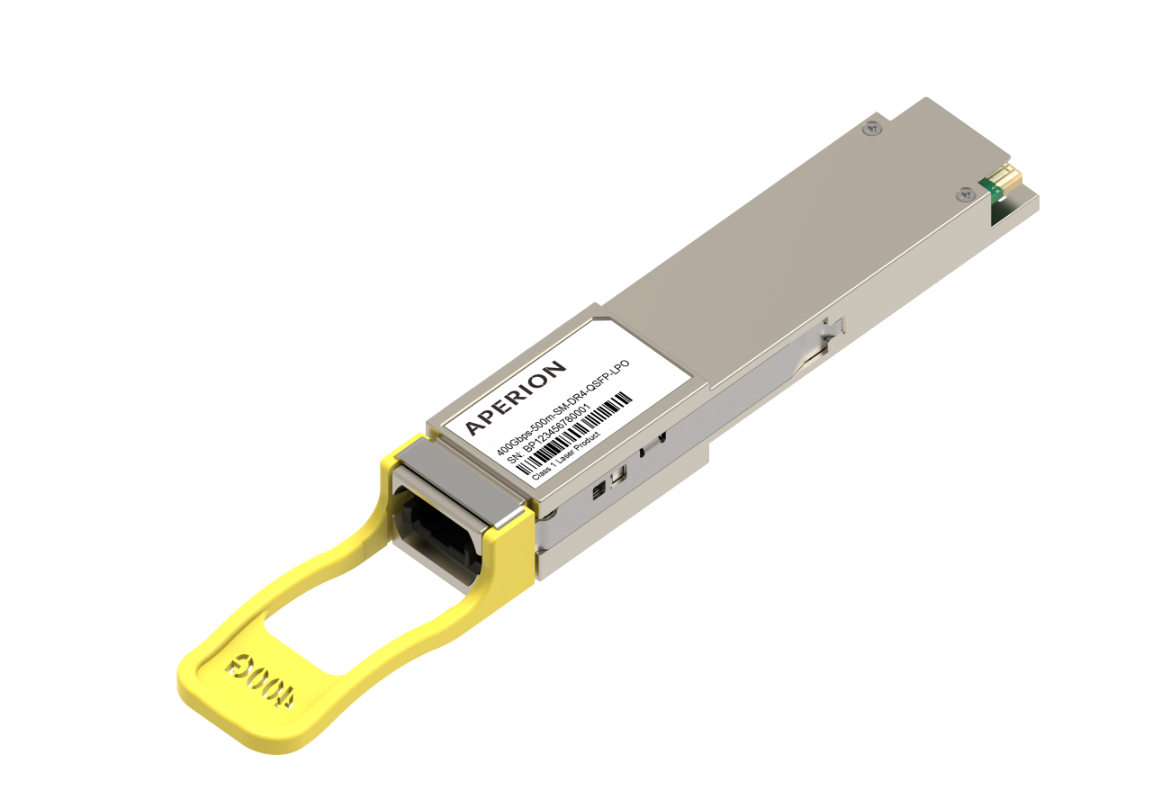

400G QSFP112 DR4 LPO

400T-AA-DQP

  • Uses advanced linear technology, without DSP or CDR, to transmit and receive optical data at speeds up to 106.25 Gbps per channel using PAM4 modulation over single mode fiber. The LPO design helps lower power consumption and reduce latency, making it more energy-efficient and cost-effective. This hot-pluggable module includes high performance modulators and detectors for reliable data transmission.

powered by

aperion_technologies_logo

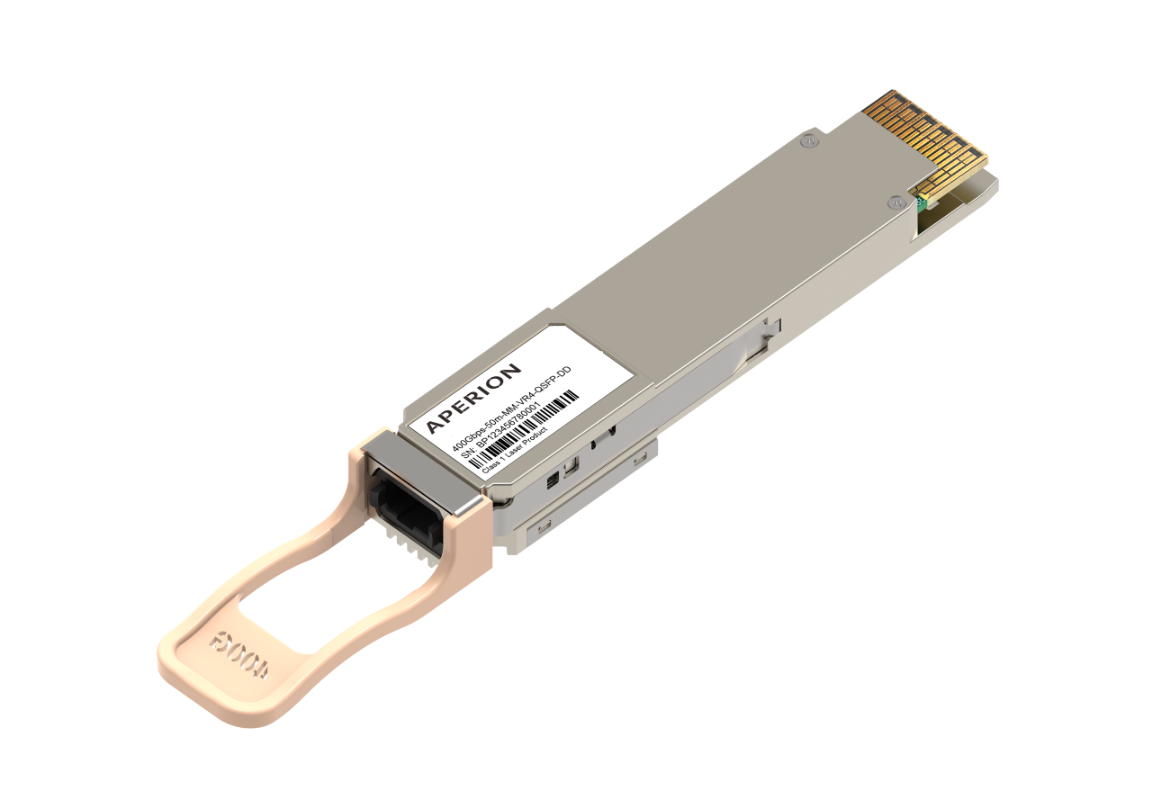

400G QSFP56-DD VR4

400T-AA-VQD

  • Links up to 106.25 Gb/s data rate (per channel) by PAM4 modulation format over multi-mode fiber. It is a small-form-factor hot pluggable transceiver module integrated with the high performance VCSEL laser and high sensitivity PIN receiver. It is compliant with 400G Ethernet specs and QSFP-DD MSA.

powered by

aperion_technologies_logo

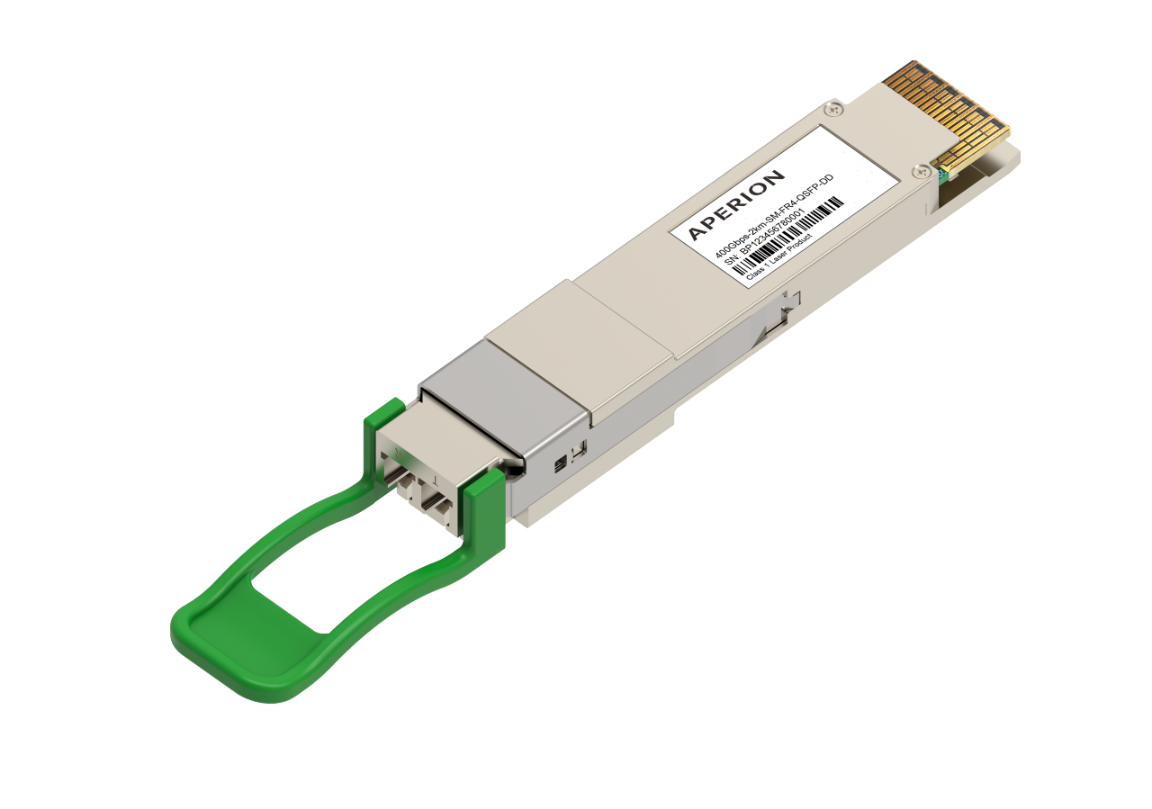

400G QSFP56-DD FR4

400T-AA-FQD

  • Links up to 106.25 Gb/s data rate (per channel) by PAM4 modulation format over single-mode fiber. It is a small-form- factor hot pluggable transceiver module integrated with high performance EML laser. It is compliant with 400G Ethernet specs; QSFP112 MSA.

powered by

aperion_technologies_logo

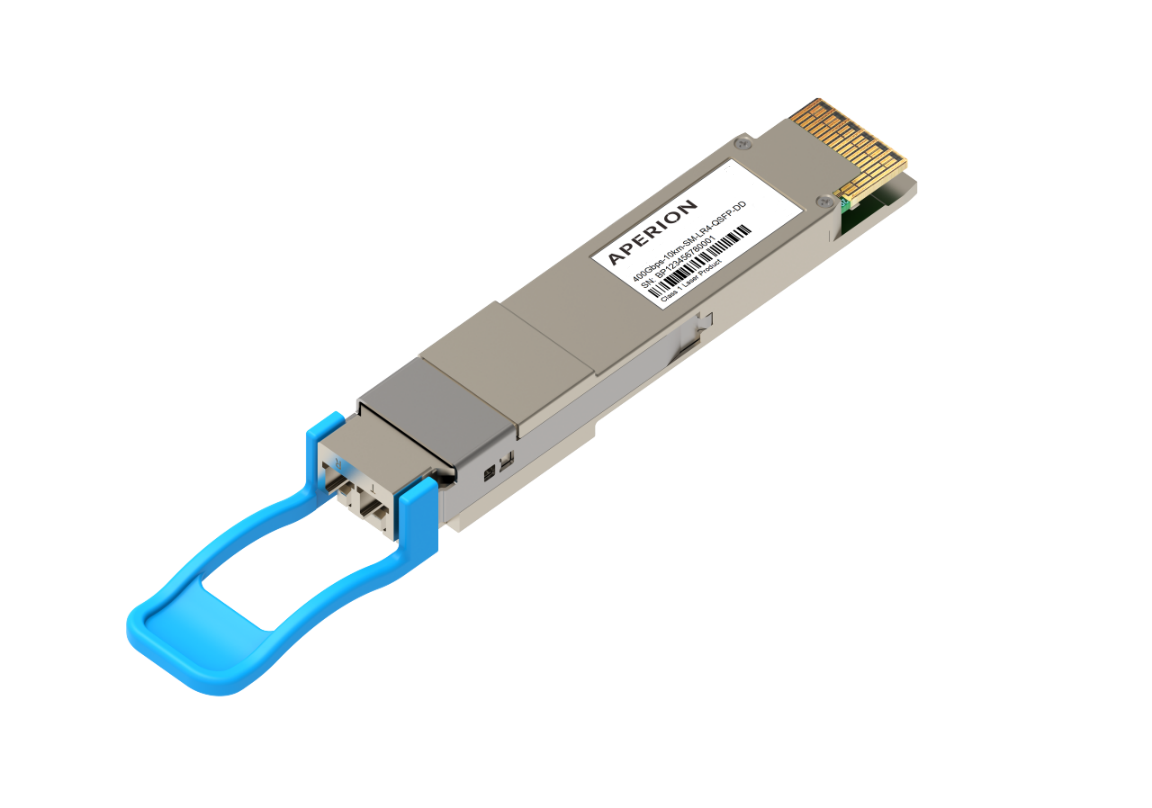

400G QSFP56-DD LR4

400T-AA-LQD

  • Links up to 106.25 Gb/s data rate (per channel) by PAM4 modulation format over single-mode fiber. It is a small-form- factor hot pluggable transceiver module integrated with high performance EML laser. It is compliant with 400G Ethernet specs; QSFP-DD MSA.

powered by

aperion_technologies_logo

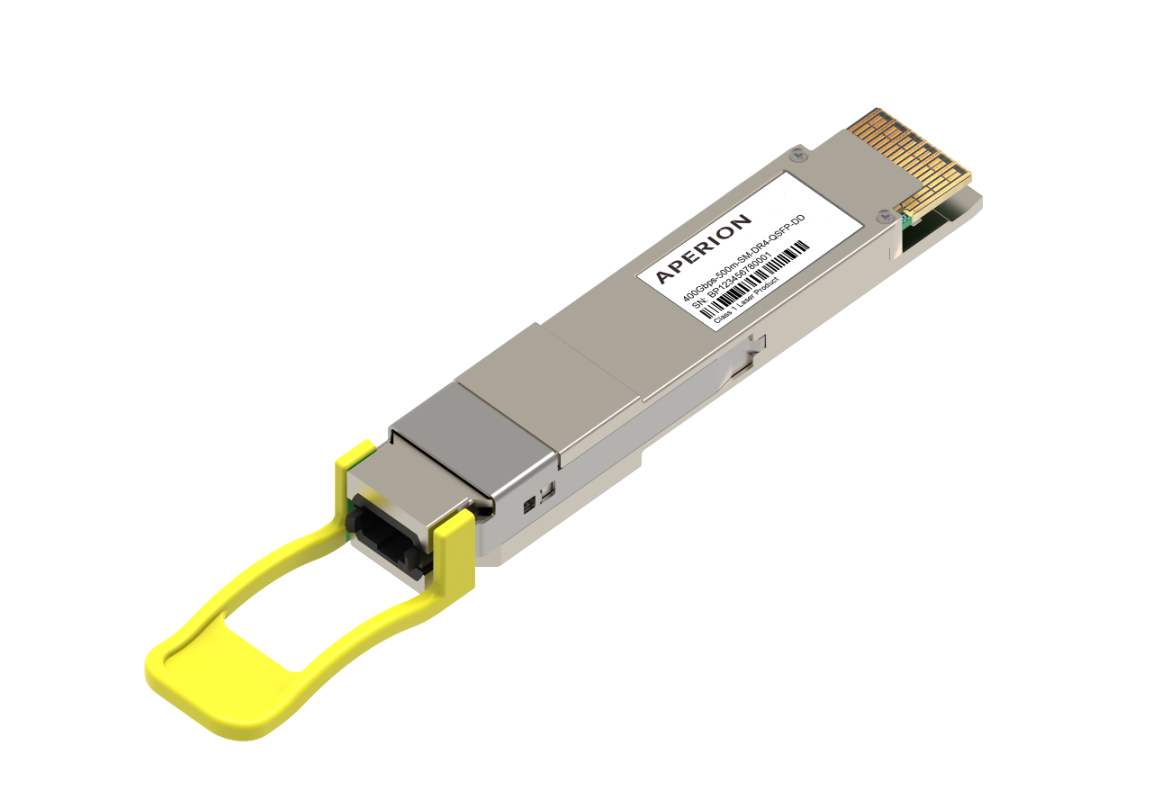

400G QSFP56-DD DR4

400T-AA-DQD

  • Links up to 106.25 Gb/s data rate (per channel) by PAM4 modulation format over multi-mode fiber. It is a small-form-factor hot pluggable transceiver module integrated with the high performance VCSEL laser and high sensitivity PIN receiver. It is compliant with 400G Ethernet specs and QSFP-DD MSA.

powered by

aperion_technologies_logo

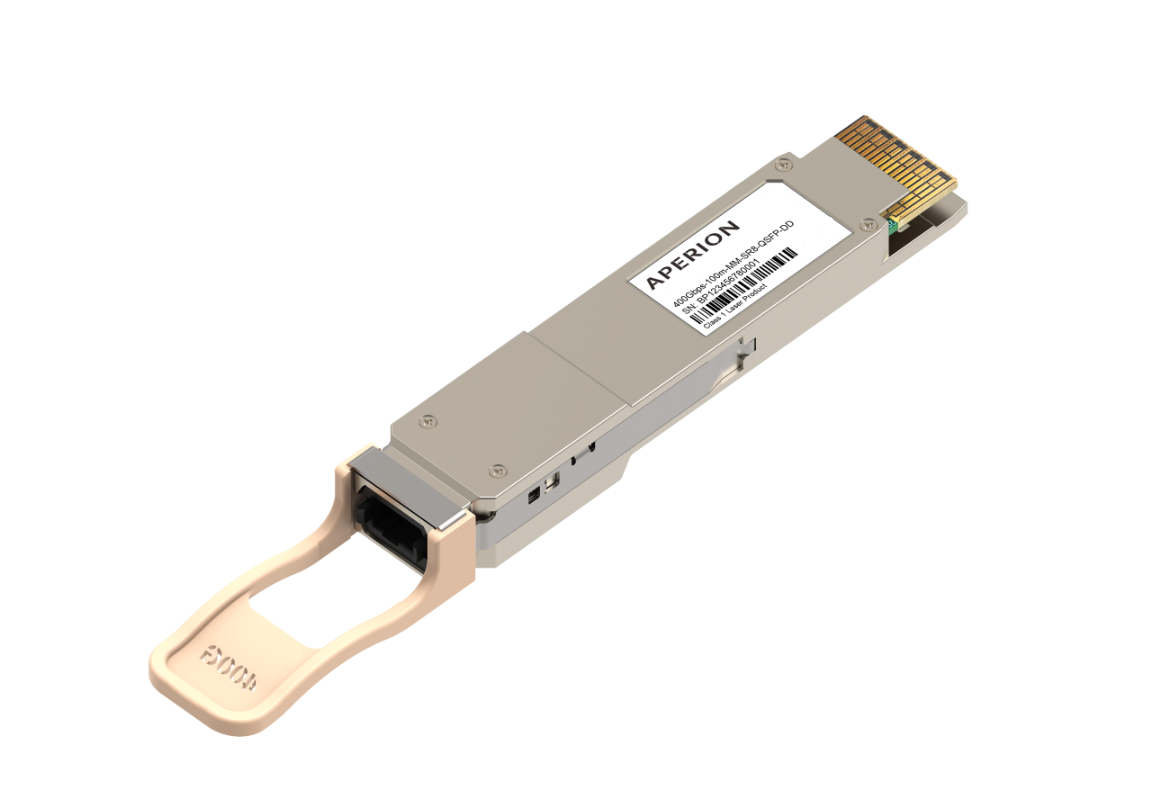

400G QSFP56-DD SR8

400T-AA-SQD

  • Links up to 53.125 Gb/s data rate (per channel) by PAM4 modulation format over multi-mode fiber. It is a small-form- factor hot pluggable transceiver module integrated with the high performance VCSEL laser and high sensitivity PIN receiver. It is compliant with 400G Ethernet specs; QSFP-DD MSA.

powered by

aperion_technologies_logo

ADDITIONAL USE CASES

AI-HPC

AI Infrastructure

  • Full mesh
  • EVPN / VXLAN, SAG, DFMA, telemetry
  • Programmable Fabric
  • L1/L2 Xconnect
  • Optical modules abstraction
  • Speed of Switch 100G / 400G / 800G
  • Enterprise or Community SONiC
  • Cruz Management System
Data Center Hardware

DATA CENTER

  • CLOS (ToR / leaf / spine) architecture
  • EVPN / VXLAN, SAG, MCLAG
  • Speed of Switch 10G / 25G / 100G
  • Enterprise or Community SONiC
  • Cruz Management System
ENTERPRISE CAMPUS

ENTERPRISE CAMPUS

  • Connect to company WAN for remote management
  • PoE network with Wi-Fi, VoIP phone
  • Management VRF, NAT, LACP
  • Speed of Switch 1G (with PoE)
  • Enterprise or Community SONiC
  • Cruz Management System

Talk to us today to learn more about total, integrated, networking solutions.
